OBDDiag Generic

Android App Analysis and Review: OBDDiag Generic, Developed by OBD Scantech. Listed in Private Category. Current Version Is v6q, Updated On 25/02/2019 . According to users reviews on Google Play: OBDDiag Generic. Achieved Over 100 Installs. OBDDiag Generic Currently Has 6 Reviews, Average Rating 3.5 Stars

The application communicates with your vehicles ECU at the 16 Pin OBD2 Diagnostic Connector. Most of the OBD2 connector location should be under the Steering Wheel Compartment. ELM 327 Bluetooth adapter is required to make this application work.

See information below for the Hardware Type Requirement.

Vehicle computer system have multiple signal protocols and ELM 327 will support many of them. Currently, the following protocols are supported by the app and MUST be OBD2 Compliant Vehicle.

* VPW - 1996-2004 Year (GM vehicles)
* PWM - 1996-2004 Year (Ford vehicles)
* ISO 9141(Slow) - 1996-2004 (Chrysler, European, and Asian vehicles)
* KWP 2000(Slow/Fast) - 1996-2004 (Chrysler, European, and Asian vehicles)
* CAN BUS (11/29 Bit) - (2004 and Newer)

-----------------------------------------------------------
OBDDiag Generic Supports the Following
-----------------------------------------------------------

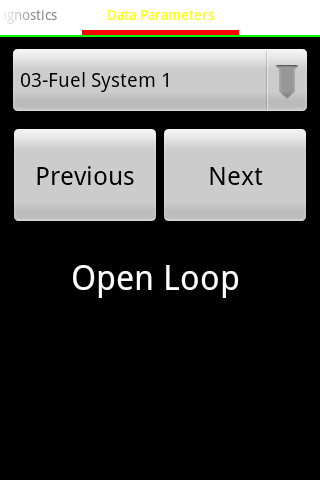

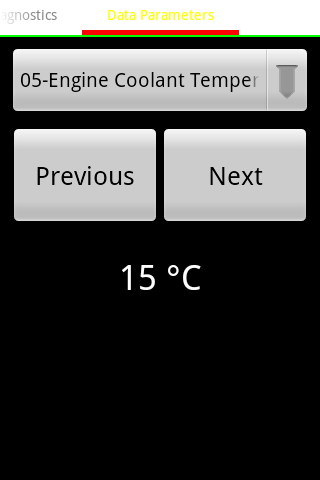

* Mode 1 - Data Parameters
* Mode 2 - Freeze Frame Data

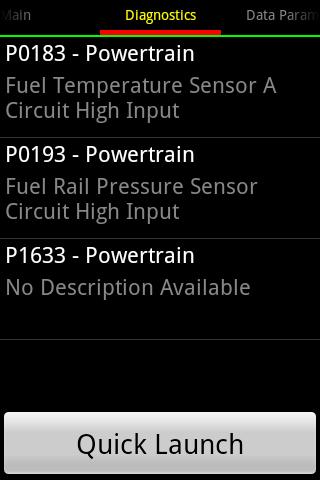

* Mode 3 - Read Current Faults
* Mode 4 - Clear Faults

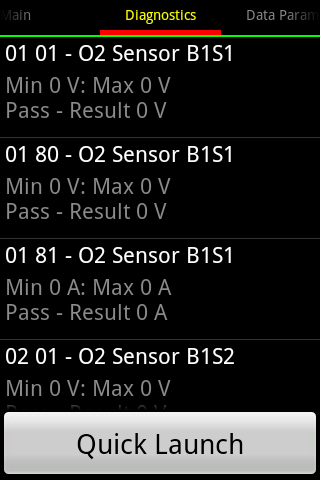

* Mode 6 - On-board Test Result
* Mode 7 - Read Pending Faults
* Mode 9 - Vin, ECU Name, Tracking Performance Data and Calibration/Verification Id
* Mode A - Read Stored Faults

HARDWARE REQUIREMENT: ELM 327 (Clone Type) Bluetooth Adapter or OBDLink MX
Vendors Type: CHX, OBDII, BAFX Bluetooth Device tested OK.
