Process Piping 90 degree Branch Connection

Android App Analysis and Review: Process Piping 90 degree Branch Connection, Developed by Ceyone Apps. Listed in Education Category. Current Version Is v6q, Updated On 07/05/2019 . According to users reviews on Google Play: Process Piping 90 degree Branch Connection. Achieved Over 2 Installs. Process Piping 90 degree Branch Connection Currently Has 1 Reviews, Average Rating 2x9 Stars

ASME B 31.3 PROCESS PIPING 90 DEGREE BRANCH CONNECTION APP CAN BE USED TO FIND THE BRANCH CONNECTION TYPE VERY EASILY. NO NEED TO SEARCH IN LEGEND AND CHART.

According to the Header size and the Branch size in NPS, the branch connection type can be found out.

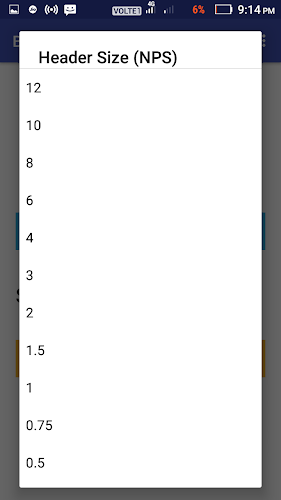

Header Size in NPS are as follows

48, 42 , 36, 30, 24, 20, 18, 16, 14, 12, 10, 8, 6, 4, 3, 2, 1.5, 1, 0.75, 0.5

Branch Size in NPS are as follows

0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 30, 36, 42, 48

The following branch types can be found out for the x axis HEADER SIZE and y axis BRANCH SIZE CHART

- Reducing Tee

- Branch weld w/ Reinforcing Pad ( Pad thickness equals run pipe thickness. Pad width equals 1/2 branch OD.

-Sockolet

- Tee

- Weldolet
